A Gentle Introduction to Git at CAEN

• Git is a free distributed version control system.
• Git manages collections of text files (known as repositories) so many people can work on them and they can be merged together again if needed, and all changes are tracked and can be seen at any time.

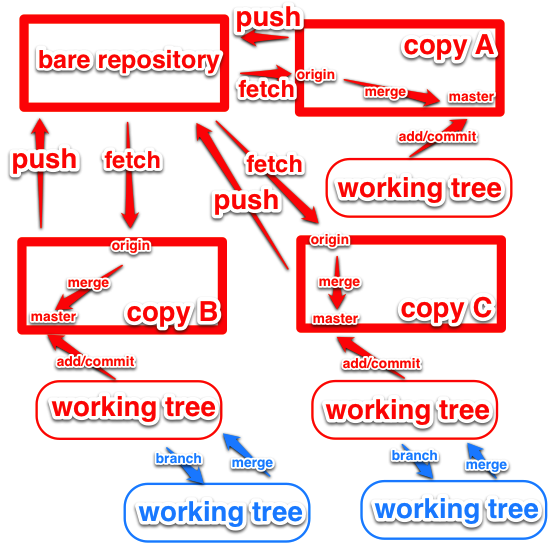

• The distributed nature of Git means that if you get a copy of a Git project (also known as a copy, or a clone, or a pull), you:
  • get the entirety of the project, including all of the history
  • you become a "master repository", since every copy is a "master repository"

There are a few commands you'll run only once per system on which you use Git¹. One is setting your name and email address:

$ git config --global user.name "John Doe"
$ git config --global user.email johndoe@example.com

You can also have per-repository names and email address by leaving off --global and running those commands inside of a repository.

In any directory you can type git init which creates a .git directory for you.

After that, you can create files or use files that exist in that directory to populate your git tree by using the commands git add <filename> and git commit

You can then use git clone, git pull, and git push to copy, update from, and update to your repository.

Use svn2git from: https://github.com/nirvdrum/svn2git to create a new git repository using the URL of an existing SVN repo. The README file includes examples of how to convert SVN repos with non-standard layouts or to exclude certain files from the migration.

Then create a new empty repo in github, and set the origin and push using:

git remote add origin <you>@github.com:caen/REPO_NAME.git
git push origin master

More information and some best practices can be found at: https://help.github.com/articles/importing-from-subversion

The CAEN GitHub Repositories are listed at: https://github.com/CAEN/

and looking at the list of repositories on the right-hand side of the page. You will only see those repositories to which you have been granted access.

To copy a repository from the CAEN GitHub project, you first need permissions. As soon as you can see it in the list at https://github.com/CAEN/ you can copy it.

The command to copy a repository is:

git clone https://github.com/CAEN/<repository_name>

After that you'll have a complete copy of everything in that repository.

There are no "master" repositories in Git, so you can clone the repository again from your copy, or allow others to clone your copy, and merge them back in later or not. In most cases, you have files in Box or AFS so sharing isn't very practical.

There are two recommended ways to work with CAEN Git Repositories.

1. Do all your work locally in branches, and push the master branch to GitHub when you're done.
2. Make a "user branch" for yourself, push the branch to GitHub, do your work in that branch or branchs of that branch, merging in changes from the master branch from time to time, and when you'd like your branch merged into the master branch, ask the owner of the master branch to do the merge for you, so she or he can make sure your changes are appropriate.

Both of these methods are described in more detail below.

Basic Branching and Merging is well described here: http://git-scm.com/book/en/Git-Branching-Basic-Branching-and-Merging

The command

$ git checkout -b iss53
Switched to a new branch "iss53"

creates a branch and switches to it. This is the same as

git branch iss53
git checkout iss53

The command git branch lists the branches; the one with the * by it is the active branch.

[acaird@Andrews-Mac researchcomputing (master)]$ git branch
  acaird
  agenda
* master
  paul
  storage
  webcontent

The command git checkout <branchname> switches to another branch.

The command git diff <branchname> shows the differences between the current branch and <branchname>.

To merge a branch with the current branch, type: git merge <branchname>

A common workflow is to do:

• git pull
• git checkout -b mybranch
• edit files on mybranch
• commit changes on mybranch with the git commit command
• do more edits and commits on mybranch
• switch back to the master branch with the command git checkout master
• update the master branch with git pull
• check the differences between the master branch and mybranch with the command git diff mybranch
• if the differences look OK, merge mybranch into the master branch with the command git merge mybranch
• push your changes back to the origin with the command git push

To switch branches from a "dirty" branch without commiting the changes, simply type git stash ², which moves your changes off to the side, thus making your current branch clean so you can switch away from it.

• git stash list lists the things you've stashed
• git stash apply applies the most recent stash to the current branch
• git stash drop deletes the most recent stash
• gitstash pop is the same as git stash apply ; git stash drop
• You can apply other stashes by naming them with their stash@{#} name
• You can turn stashed changes into a branch with the command git stash branch <branchname> if you want to split it from the branch it was in.

Branch management in repositories is well described here: http://goo.gl/95003

Using the name plugin for our example branch (git checkout -b plugin) the command:

git push -u origin plugin

tells git to push changes from your plugin branch to the plugin branch on the origin repository.

• If origin does not have a plugin branch, it is created on the fly.
• The -u tells git that you want to be able to easily push and pull changes to that branch in the future.
• -u is the same as --set-upstream and adds a remote reference so the commands git push and git pull while in that branch locally will push to and pull from that branch remotely).

git fetch origin
git checkout --track origin/plugin

The first command updates your repository with the changes from the remote repository.

The second command creates a local branch named plugin that matches the origin/plugin branch and tells git that you want to be able to easily push and pull from the branch called plugin on GitHub.

Git has a large community, so Google is your friend, but there are a few other things that are worth pointing out.

Git maintains a lot of state, but to see it you have to ask by running git status

Two of the most used pieces of state information are:

• the name of the branch you are on
• whether that branch is "dirty" or not.

Using advice from http://en.newinstance.it/2010/05/23/git-autocompletion-and-enhanced-bash-prompt/ or the included (in some distributions) git-completion.bash you can change your shell prompt when you are in a directory with a .git/ directory to look like:

[acaird@Andrews-Mac CAEN-Testing (acaird *)]$

In this case:

• I am in the CAEN-Testing directory, which is a clone of the CAEN-Testing git repository
• I am on the acaird branch
• The branch is dirty, as shown by the *

The optional autocompletion feature is also a time saver, and can complete git commands, branch names, etc.

git is not installed by default with OS X, but is included in the free download of XCode in the Mac App Store. After installing XCode, you then install the command line tools using the Downloads section in XCode's preferences.

To install the autocomplete and git prompt features, you can then:

curl -o ~/.git-completion.sh https://raw.github.com/git/git/master/contrib/completion/git-completion.bash
curl -o ~/.git-prompt.sh https://raw.github.com/git/git/master/contrib/completion/git-prompt.sh

Then, add the following lines to your ~/.profile, creating the file if necessary:

source ~/.git-completion.sh
source ~/.git-prompt.sh
GIT_PS1_SHOWDIRTYSTATE=true

PS1='\[\033[32m\]\u@\h\[\033[00m\]:\w\[\033[31m\]$ (__git_ps1)\[\033[00m\]\$ '

To load the changes into the active terminal session, type:

source ~/.profile

Many of the git commands can use color to make reading output more comfortable in the terminal, but not all installations have this enabled by default.

To enable color:

git config --global color.ui true

• you can delete a whole branch with the -D option to git branch like:

$ git branch
* acaird
master
$ git checkout master
$ git branch -D acaird

• you can revert a file in a modifited branch with the command

$ git checkout -- MyFileName

There are many books on Git, and several floating around CAEN if you want to look at them.

I like Pro Git by Scott Chacon, in part because it is free in electronic forms (PDF, Mobi, and ePub), can be ordered from Amazon for about $20, and is online in HTML. All of this is at http://git-scm.com/book

• Thanks to Dan Maletta, Phil Trieb, and Tom Knox for their help with these slides.
• Also, I know for a fact that the Linux Systems and HPC Groups use git, so you can ask them for help, too.
• Good email address:
  • caen-git-users@umich.edu
  • to get added to that, email caen-git-admin@umich.edu
