4. Isothermal Reactor Design

Learning Resources

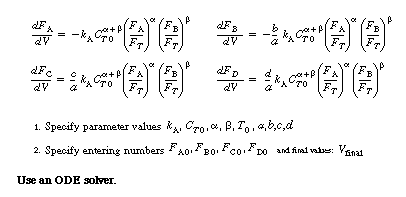

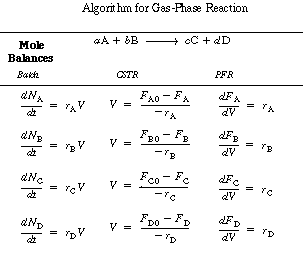

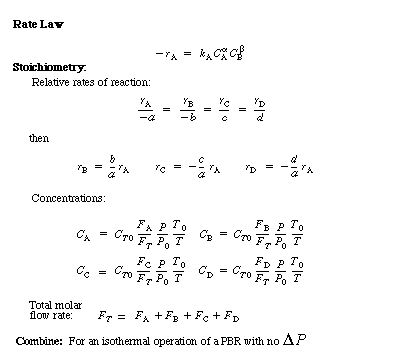

Algorithm for Gas-Phase Reaction when conversion is not used as a variable.


IMAGE 04eq86.gif

IMAGE 04eq87a.gif

IMage 04eq87b.gif



Fogler & Gurmen
© 2008 University of Michigan
