Chapter 12: Steady-State Nonisothermal Reactor Design: Flow Reactors with Heat Exchange

Adiabatic Liquid Phase in A CSTR

    Second Order Reaction Carried Out Adiabatically in a CSTR

    The acid-catalyzed irreversible liquid-phase reaction







is carried out adiabatically in a CSTR.

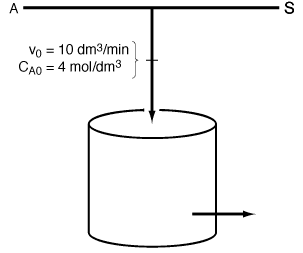

Chapter 8, Figure CDE8-2.1

The reaction is second order in A. The feed, which is equimolar in a solvent (which contains the catalyst) and A, enters the reactor at a total volumetric flow rate of 10 dm 3 /min with the concentration of A being 4M. The entering temperature is 300 K.

(a) What CSTR reactor volume is necessary to achieve 80% conversion?

(b) What conversion can be achieved in a 1000 dm 3 CSTR? What is the new exit temperature?

(c) How would your answers to part (b) change, if the entering temperature of the feed were 280 K?

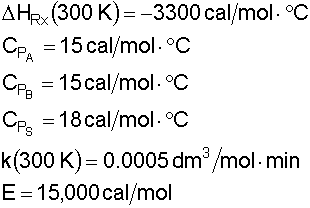

Additional Information:

image ex8-2-01.gif



Solution
