Chapter 18: Models for Nonideal Reactors

Additional Homework Problems

CDP18-AC

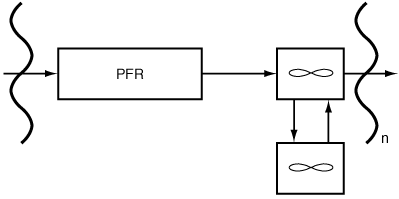

  Figure CDP14-A shows a combination of ideal reactors used to model a real reactor. Each CSTR is1/2 14eq64.gifthe volume of the PFR.





Figure CDP14-A

    (a) Qualitatively sketch the RTD (i.e., E(t ), F (t)) that would result if two of the following combinations of ideal reactors were connected in series (i.e. n = 1).
(b) How would your results change if two were connected in series (i.e. n = 2)?
(c) How about n = 5 or 10?

[3rd Ed. P14-5]
