Chapter 17: Distributions of Residence Times for Chemical Reactors

Example: Calculate Xmm and Xseg

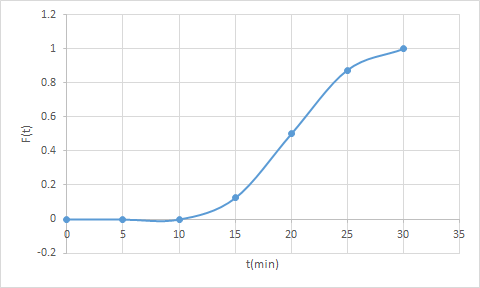

Calculate the conversion in a real reactor using the segregation and the maximum mixedness model.  The reaction A -> B is carried out in a real reactor that has the following F-curve. The entering concentration of A is 8 mol/dm3. The following F(t) was determined from a trace test




For 10<t<20

For 20<t<30

The reaction rate also varies with time as per below equation

For 10<t<20 -rA = k * CA0.6

For 20<t<30 -rA = k * CA2.7

Where, k=0.1

Calculate the conversion using

1)   the segregation model

2)   the maximum mixedness model

Also explain the difference in conversions between the two models.











Solution

1)   X seg = 0.796 [Polymath code]

2)   X mm = 0.796 [Polymath code]



Both models predict the same conversion!

The reason is: for reaction order 0 < n < 1, max mixedness predicts higher conversion and for n > 1, segregation predicts higher “X”. In this case, the reaction goes from 0.6 to 2.7 as CA decreases. Thus, the predictions of the two models average out.
