The response will be a message dialog offering to display the next input form. Clicking on ok brings up the Components section of the Data Browser.

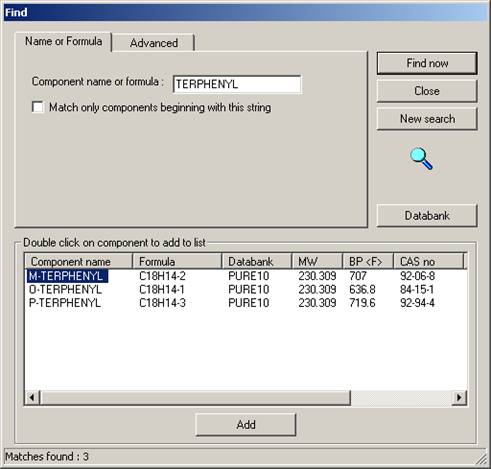

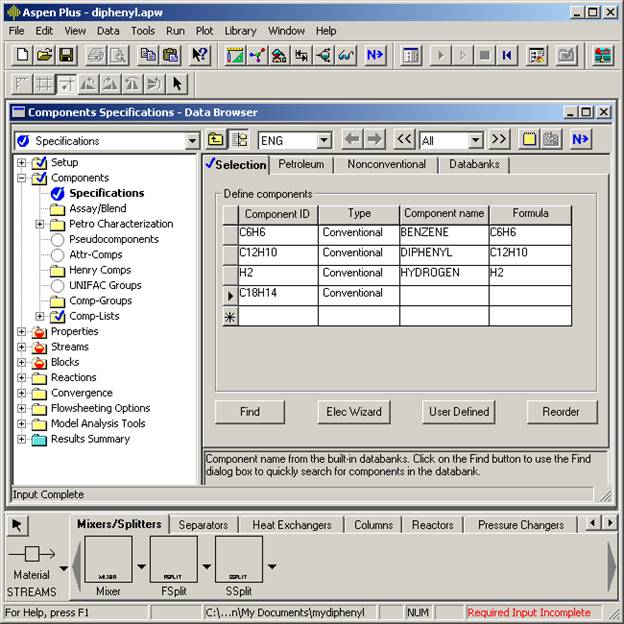

Fill out the table as suggested in the above picture. Component ID is essentially an alias for the components.� As the components we are dealing in this problem are simple enough I used their formulas as component IDs. From these component IDs Aspen Plus™ fills out the name and formula columns. However, for the fourth component it will fail because there are three isomers with the same formula: Meta-, Para-, and Ortho-terphenyl. As another hint, enter TERPHENYL in the name column of the fourth component. This will bring up a dialog box as follows:

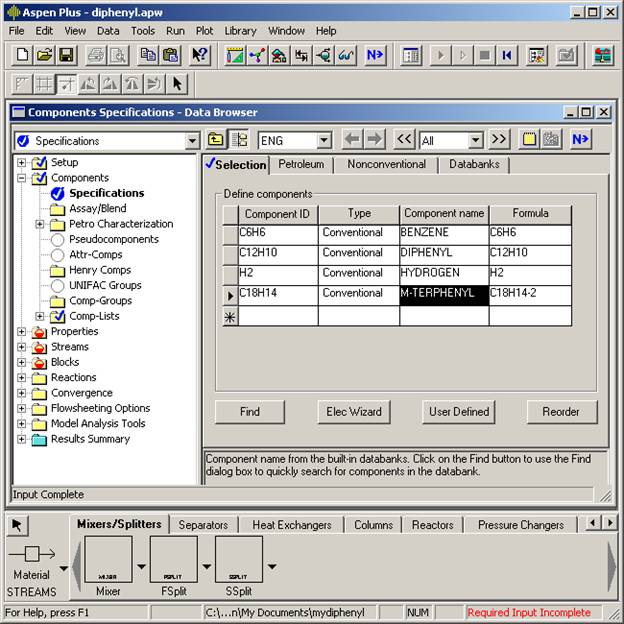

Select M-TERPHENYL, click Add and finally, close the dialog. Now the input form should look like the next picture.
The blue check sign indicates that the minimum requirements for this section are complete. Now, hitting the Next Button will take you to the next input form. However, let�s modify the defaults selected by Aspen Plus™ in the Setup section, first. Therefore close the Components section and open the Setup section in the Data Browser.
