Virtual Reality Visualization of FE Simulations

Conversion

The conversion software has a user interface that consists of two part, "Data Processing" and "Shell Display". Following is a description of the software and how to operate it. The program works with LS-DYNA input and output files.

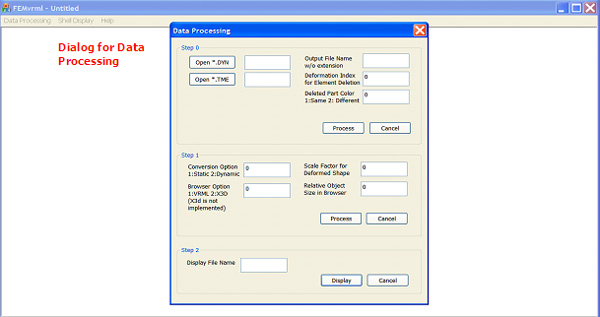

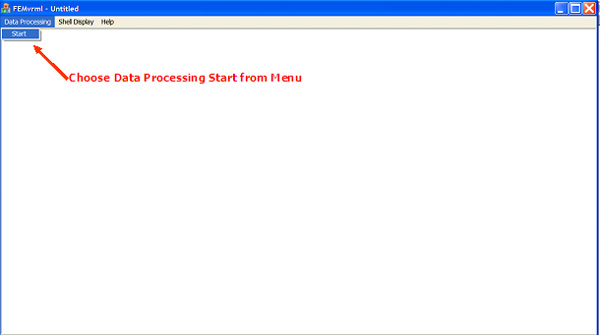

Data Processing

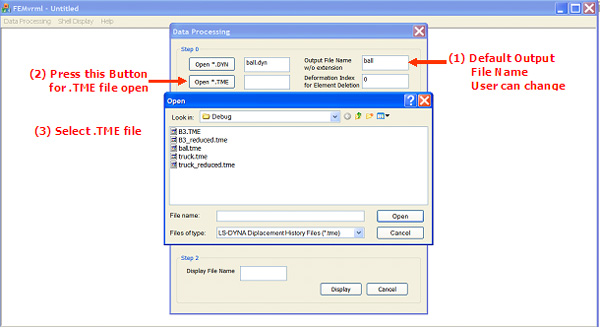

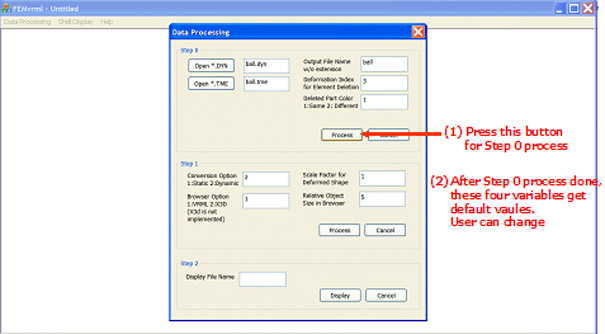

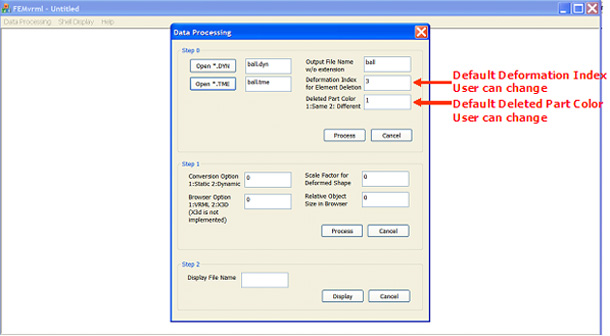

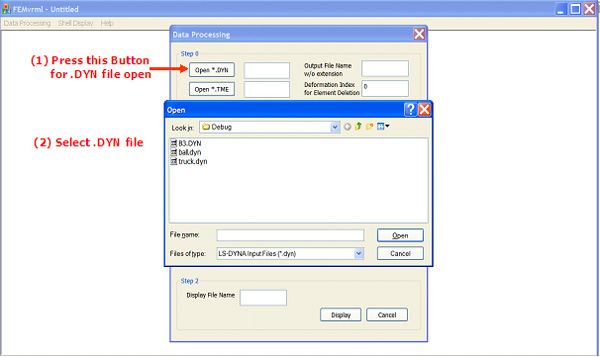

Step 0 : Open & Read Input Files

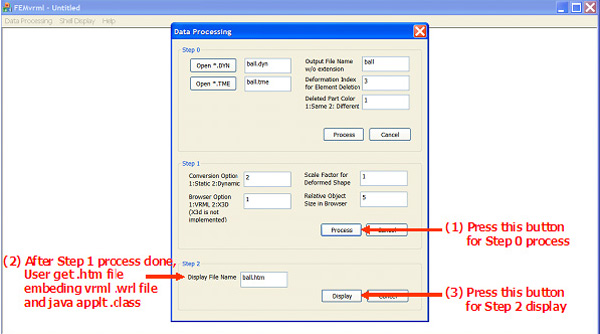

Step 1 : Data Conversion Process

Step 2 : Display

Shell Display

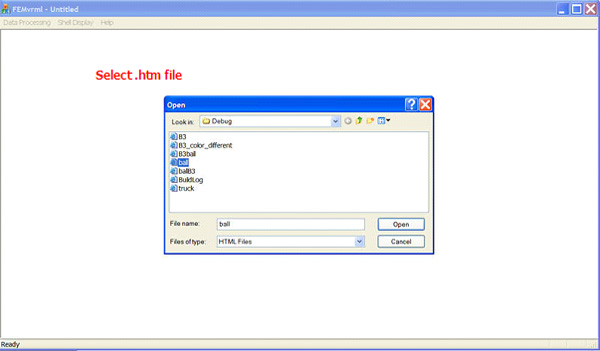

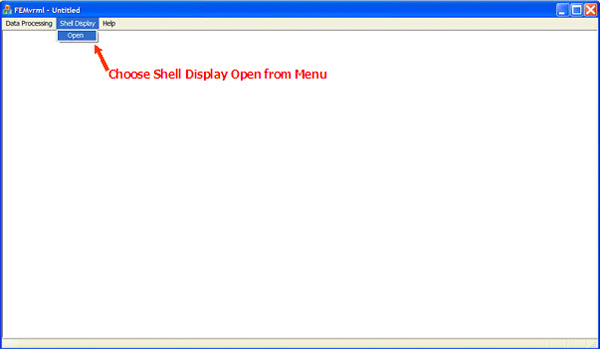

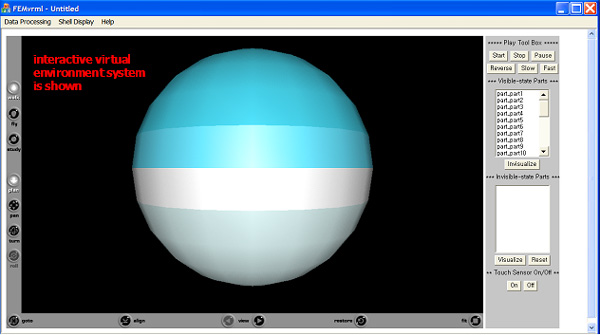

This is the same function as Data Process Step 2 - display. But It is useful when the the user does not want data conversion process and already has processed .htm file with .vrml.
