EFFECTS OF DIFFERENT PARAMETERS

Flow rate

Varying the total flow rate will affect the conversion profile and the average outlet conversion. Using the same set of equations as before, i.e. using a tubular reactor with a cooling jacket where the flow is laminar, can you place the following graphs in order of increasing flow rate?

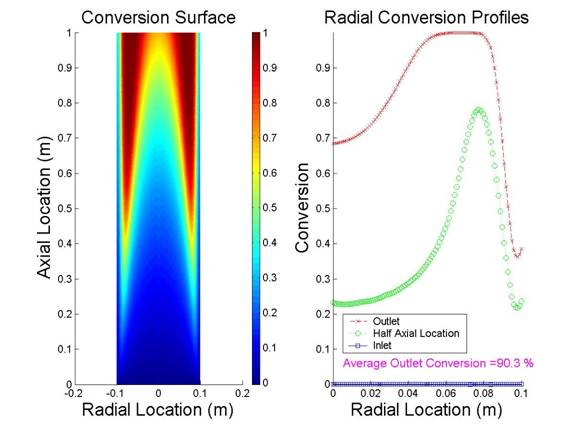

A)

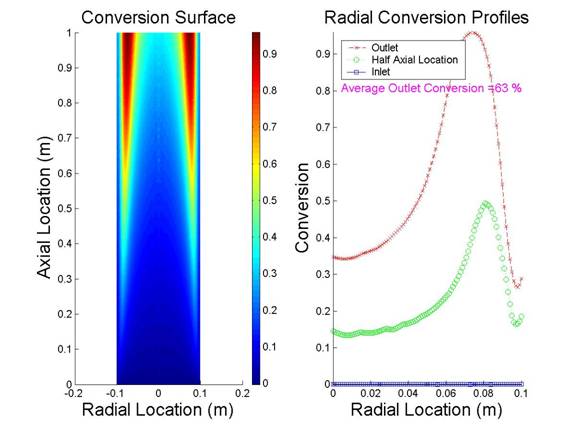

B)

C)

Place the above graphs in order of increasing flow rate.

Click on the answer!

1)      ACB

2)      CAB

3)      CBA

4)      BAC

5)      BCA

6)      ABC
