EFFECTS OF DIFFERENT PARAMETERS ON A REVERSIBLE REACTION

Flow rate

For the irreversible case we saw that the conversion profiles were shifted up towards higher conversions for lower flow rates. Will this be true for a reversible reaction? Place the following graphs in order of increasing flow rate!

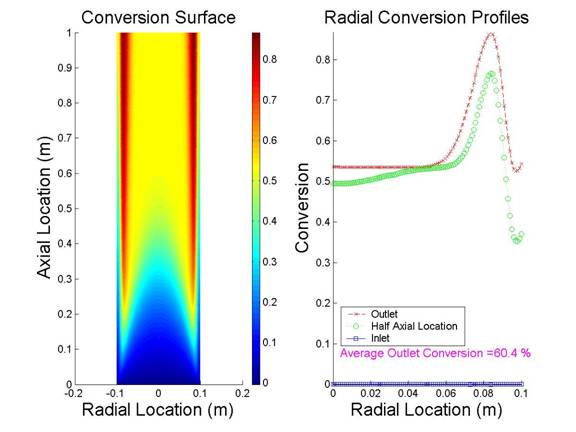

        A)

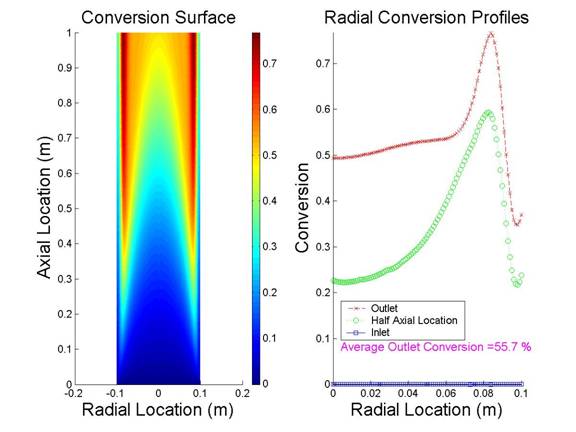

        B)

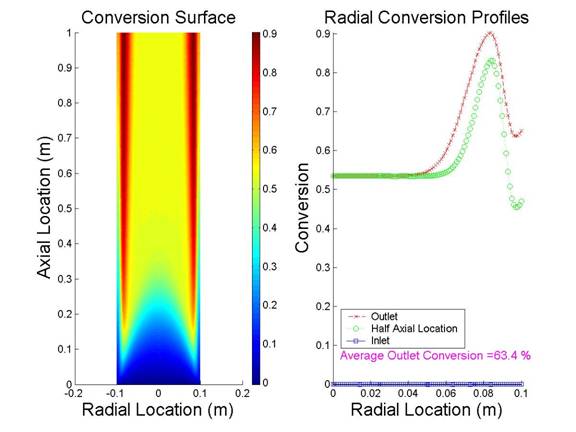

        C)

Place the above graphs in order of increasing flow rate.

Click on the answer!

1)      CAB

2)      BAC

3)      BCA

4)      ABC

5)      CBA

6)      ACB
