EFFECTS OF DIFFERENT PARAMETERS ON A REVERSIBLE REACTION

Inlet temperature

For the irreversible case we saw that the conversion profiles were shifted up towards higher conversions for higher inlet temperatures. Will this be true for a reversible reaction? Place the following graphs in order of increasing inlet temperature!

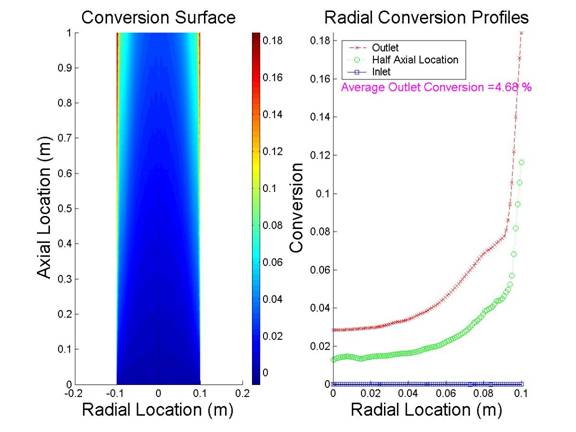

A)

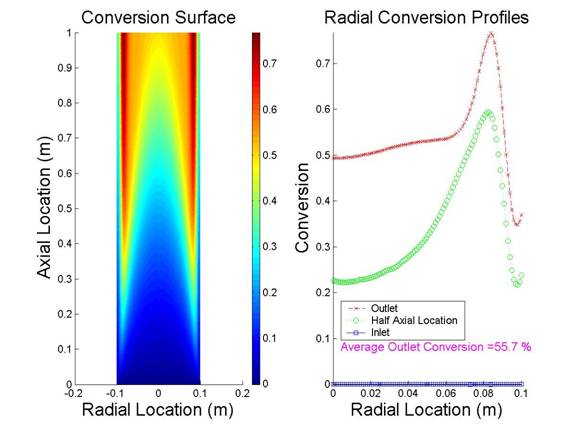

B)

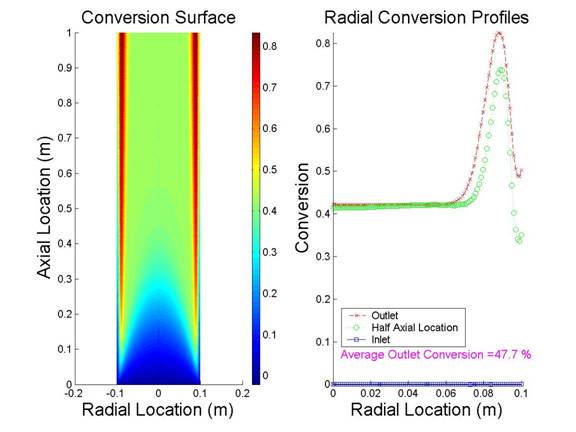

C)

Place the above graphs in order of increasing inlet temperature.

Click on the right answer!

1)      ABC

2)      CAB

3)      ACB

4)      BCA

2)      BAC

3)      CBA
