EFFECTS OF DIFFERENT PARAMETERS

Heat of reaction

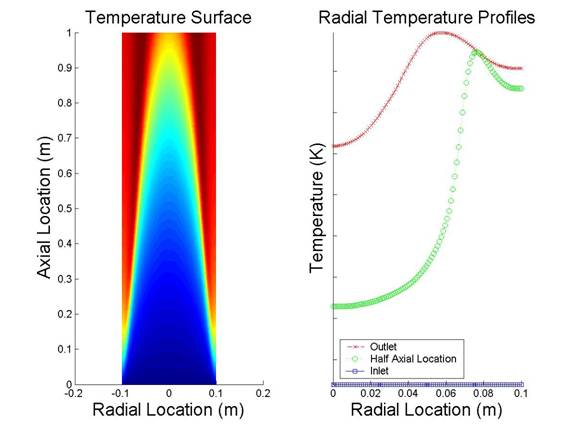

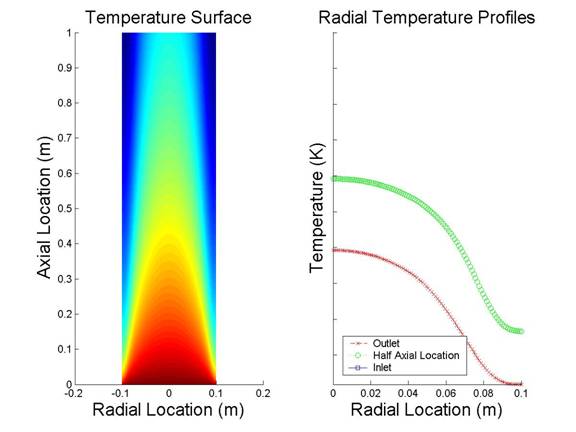

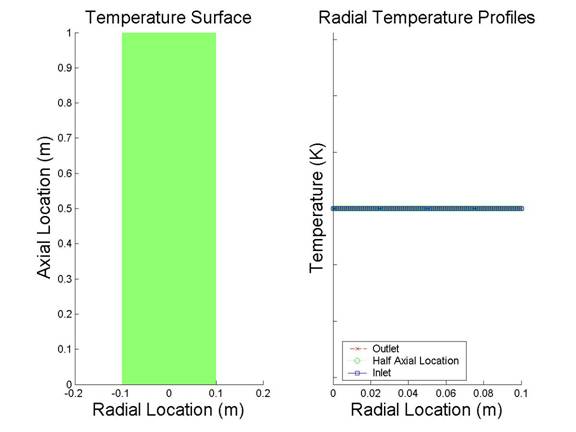

The heat of reaction affects the amount of heat produced or consumed by the reaction. Below, three graphs for three different values of the heat of reaction are displayed. Can you place the following graphs in order of increasing heat of reaction, i.e. starting with the most exothermic reaction?

        A)

        B)

        C)

Place the above graphs in order of increasing heat of reaction, i.e. starting with the most exothermic reaction.

Click on the answer!

1)       CBA

2)       ABC

3)       BAC

1)       ACB

2)       CAB

3)       BCA
